Boat-mounted Meshtastic node proves height boosts marine range

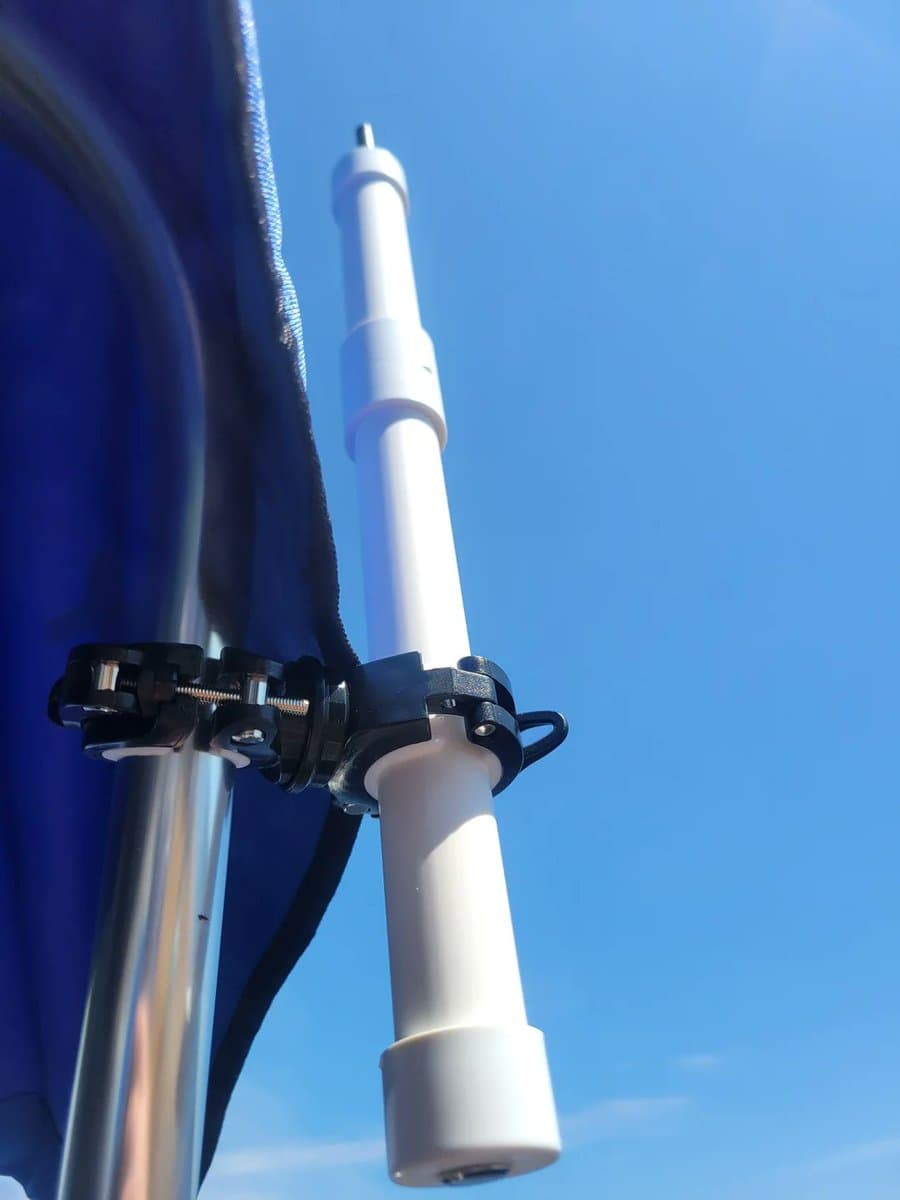

A Reddit user got the real performance bump from height, not hardware, when a Seeed Studio XIAO nRF52840 Meshtastic node was lashed to a boat with PVC pipe and a bike light mount. The setup turned a simple craft into a higher, cleaner radio perch, and that mattered more than swapping radios because Meshtastic range lives and dies on placement.

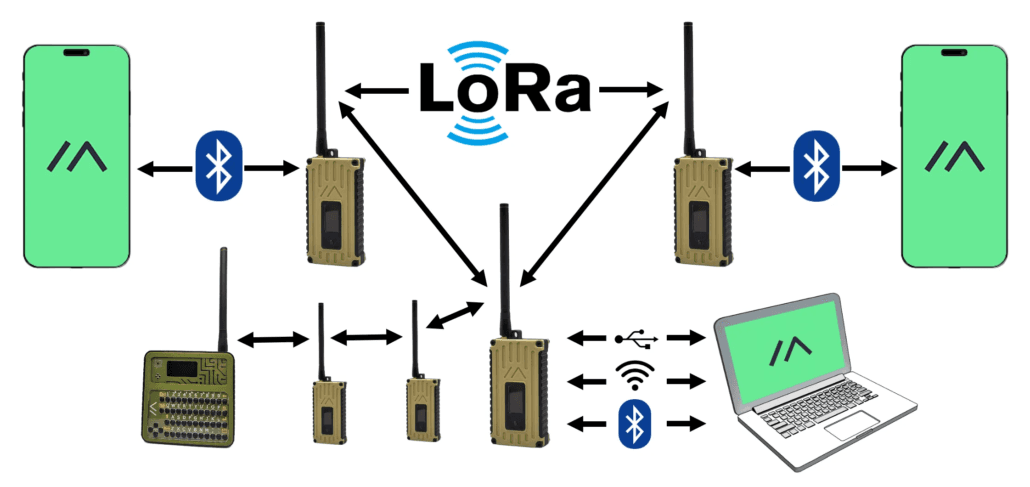

That is the core lesson for marine nodes, vehicles, and fixed sites: elevation and line of sight do the heavy lifting. Meshtastic is built as an open-source, off-grid, decentralized mesh network on LoRa radios, so its coverage depends on terrain, antenna height, cable loss, and the deployment environment more than brute transmit power. Meshtastic’s site planner even asks for antenna height above ground when it simulates coverage, and its own guidance says terrain is the number one limitation for signals.

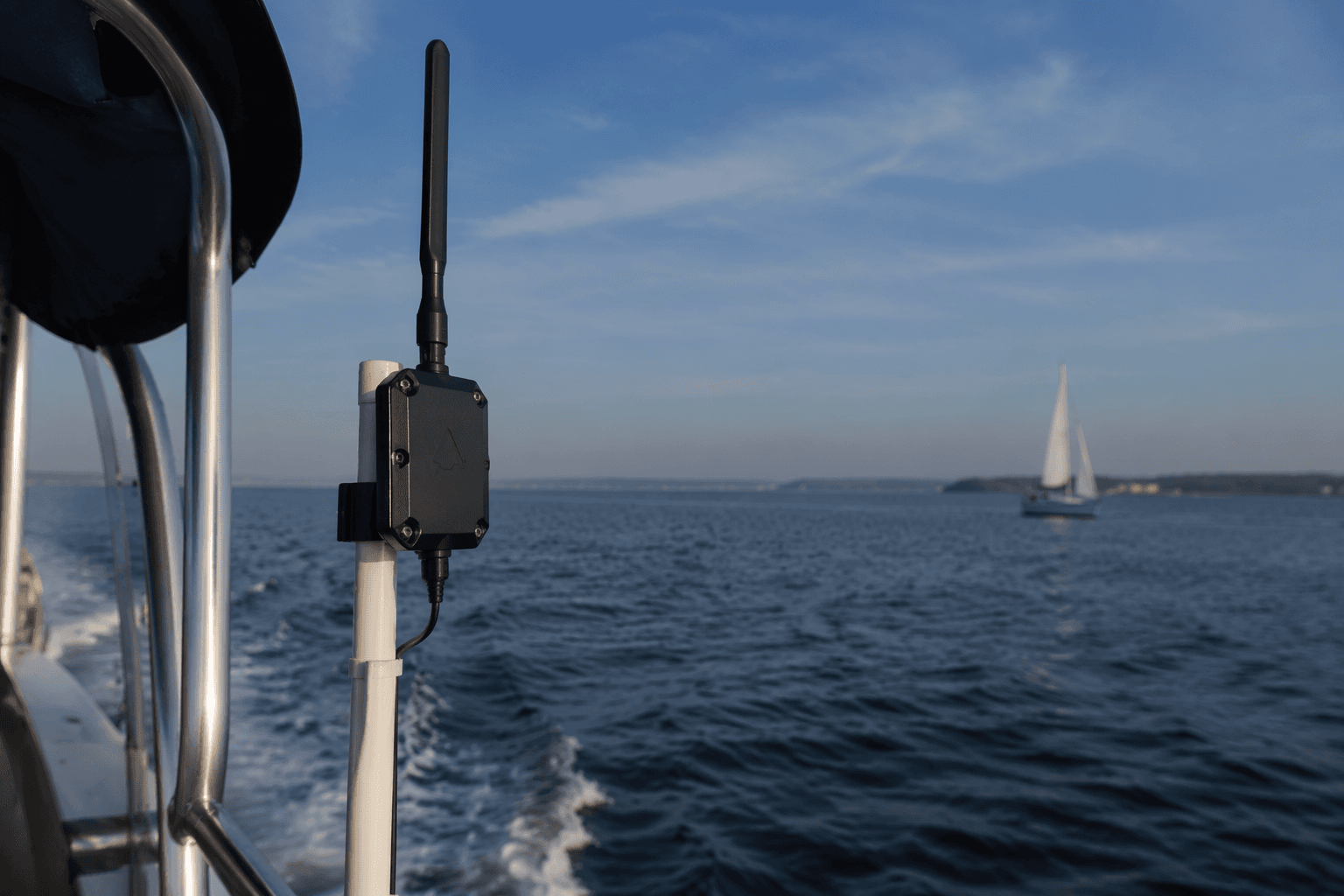

The boat build made that abstract advice concrete. Over water, a raised antenna gets a cleaner horizon than one mounted low on deck or tucked behind metal and gear, so the mesh can carry farther with less obstruction. Seeed’s 2026 Meshtastic materials make the same point in plainer language: real-world range comes from mounting height, clear line of sight, antenna choice, cable loss, and the environment, not from simply cranking up power. In that context, a PVC mast and a bike mount can be more useful than a pricier radio board.

The hardware itself is modest. Seeed says the XIAO nRF52840 integrates Bluetooth 5.0, and it markets the XIAO nRF52840 and Wio-SX1262 kit for Meshtastic, environmental monitoring, and asset tracking. That makes the board fit neatly into the kind of low-power, infrastructure-free deployments Meshtastic users build on boats, in vehicles, and at remote posts where internet and cell service are absent.

The scale of the project’s top-end range makes the payoff easier to see. Meshtastic’s range tests page lists a current ground record of 331 km, or 205 miles, and an air record of 206 km, or 128 miles. Against numbers like that, a few feet of extra antenna height on a boat is not a cosmetic tweak. It is the difference between a node that disappears into the noise and one that earns its place as a useful relay on the mesh.
