Bosch patents pellet printer that keeps printing during refills

Bosch has filed three German patent applications for a granulate printer that keeps printing while a head is being refilled. The setup is built around piston extruders and a moving bridge, and the whole point is continuity: avoid the pauses, ooze marks and layer defects that show up when an extrusion system has to stop, refill and restart.

The applications, DE102024211873A1, DE102024211875A1 and DE102024211876A1, are assigned to Robert Bosch GmbH and describe a machine that uses pellet or granulate feedstock rather than traditional filament FFF. A heating zone plastifies the material before extrusion, which puts the system in the fused granulate fabrication camp and away from the desktop spool-and-hotend world most hobbyists know.

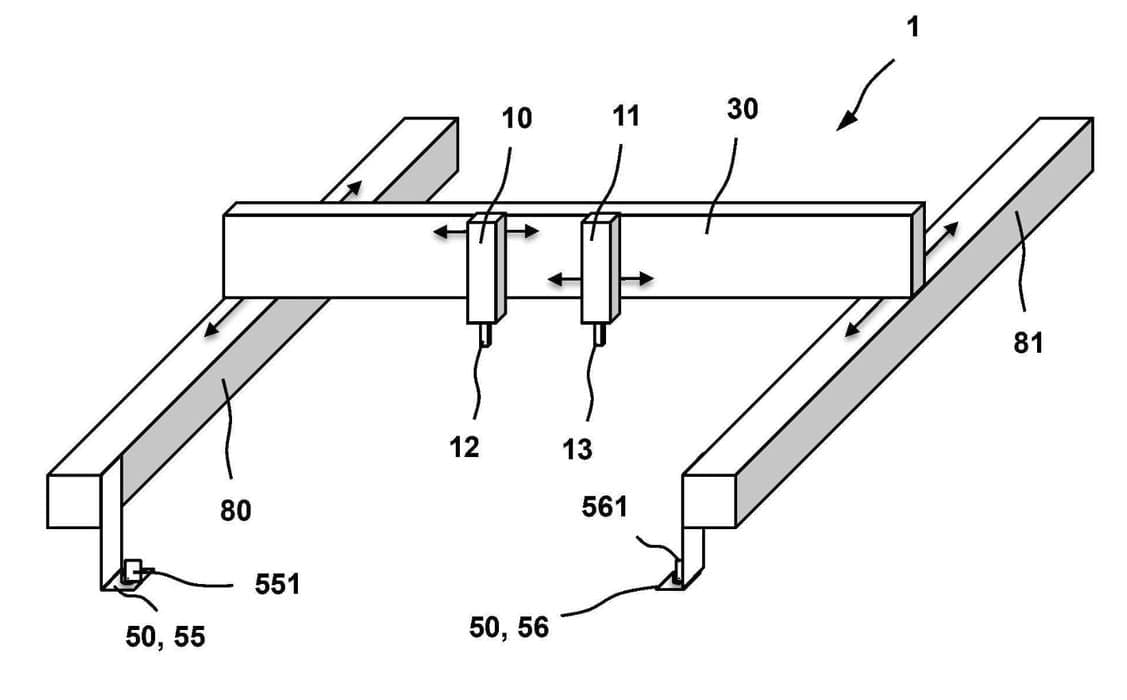

Bosch’s first move is simple but smart: use two printheads so one can keep depositing material while the other is refilled. The second application adds a dedicated sealing device that closes the nozzle during refilling, so the idle head does not leak, drip or contaminate the build area. The third patent tackles the motion system itself, with two motors driving Y motion and two more handling X motion on the moving bridge.

That matters because pellet printing has a real economic advantage. Pellets are often significantly cheaper than filament, and many industrial polymers already exist in pellet form. For large parts, fixtures and internal production work, that can make a serious difference in material cost. The catch has always been process control: once the machine stops thinking about refills as a clean handoff, the savings get eaten by rough surfaces and failed parts.

Bosch’s recent patent activity suggests it is testing the edges of a broader high-performance extrusion platform, not just one isolated gimmick. In May 2026, it also published a separate German patent application for a printhead with a heated ring around the nozzle, aimed at separating melt preparation from final bonding temperature. Taken together, the filings point to a company exploring how to make extrusion more controllable at higher throughput, not merely hotter or faster.

For makers, the key question is whether this stays in industrial territory or becomes a template for future desktop upgrades. If a pellet printer can switch, seal and resume cleanly, then refill handling stops being a nuisance and starts looking like the missing piece in larger-format printing. That is where Bosch’s patent set gets interesting: not in the fact that it prints pellets, but in the way it tries to make refills disappear without leaving a trace.
