Meshtastic adds support for Seeed XIAO ESP32C6 and Wio-SX1262

Meshtastic firmware pull request #10917 opened on July 10, 2026, adding support for the Seeed XIAO ESP32C6 and Wio-SX1262 pair. Labeled first-contribution and hardware-support, the change points straight at the build question advanced operators care about most: what does a new tiny target unlock that the usual compact ESP32 boards do not?

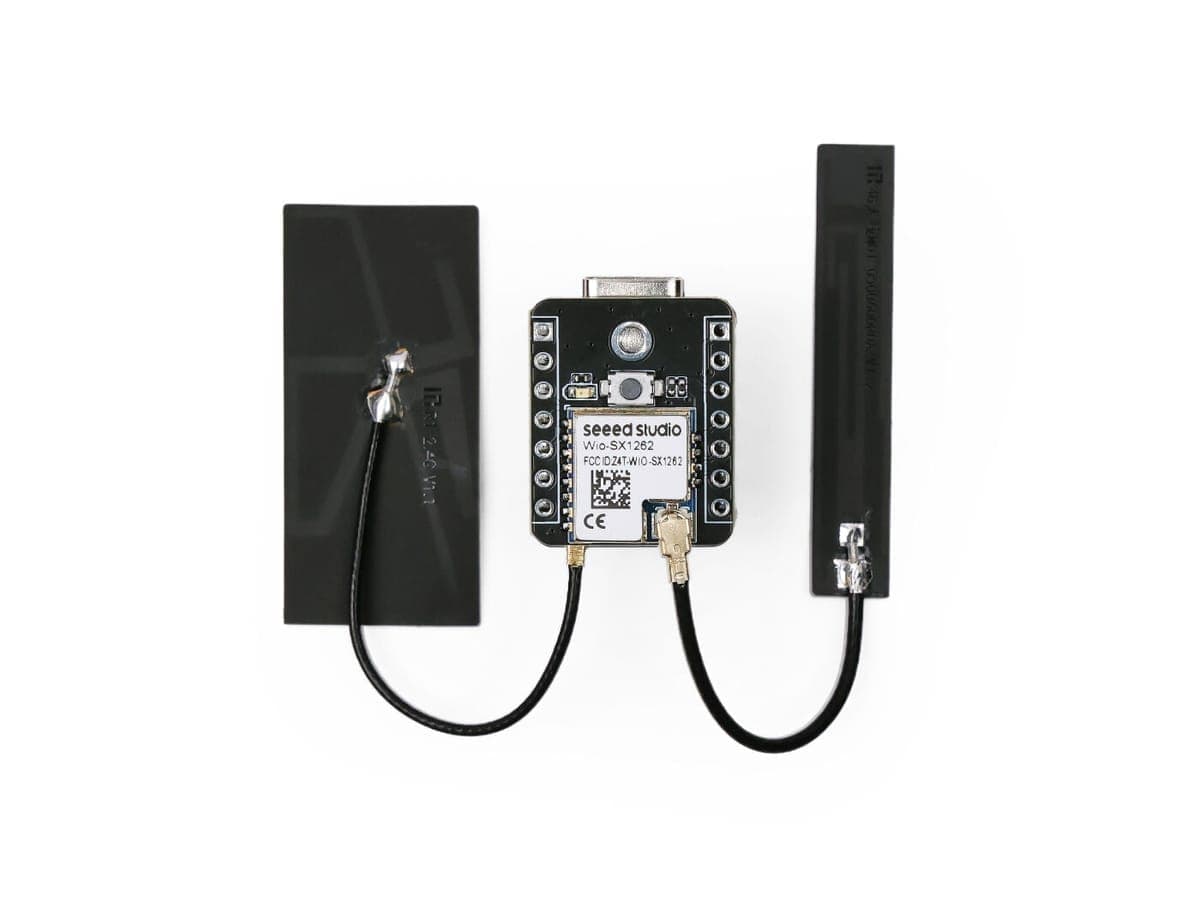

The answer starts with the hardware itself. Seeed’s XIAO ESP32C6 uses two 32-bit RISC-V processors, a high-performance core clocked up to 160 MHz, a low-power core up to 20 MHz, 512 KB of SRAM, and 4 MB of flash. It also brings 2.4 GHz Wi-Fi 6, Bluetooth 5.3, Zigbee, and Thread. Paired with the Wio-SX1262, a low-cost, ultra-low-power, ultra-compact LoRa module based on Semtech’s SX1262, the build combines off-grid mesh radio with a modern wireless front end in a package small enough for tighter enclosures and cleaner portable installs.

That matters because Meshtastic is built to run on affordable, low-power devices and can be reached by phone or computer over Bluetooth, Wi-Fi, or USB. A supported XIAO-plus-Wio board gives builders a way to prototype a node that can be programmed over USB-C, managed wirelessly, and still carry a long-range LoRa link without a sprawling parts list. For vehicle installs, sensor nodes, and cases where space is tight, the appeal is not just size. It is fewer wiring headaches before first packet and fewer excuses for a board to dominate the enclosure.

Meshtastic is not starting from scratch here. The project already documents Seeed Wio-SX1262 variants for the XIAO nRF52840 and XIAO ESP32-S3, and its own hardware notes warn that Wio-SX1262 modules from different Seeed kits do not share the same pin configuration. A GitHub issue for a related XIAO ESP32S3 and Wio-SX1262 board spelled that out in practical terms, with variant files needing rewrites for pins such as LORA_CS, LORA_RESET, LORA_DIO1, SX126X_BUSY, and SX126X_RXEN. That kind of board-specific work is exactly what keeps small radio builds recoverable instead of fragile.

The new target also fits a pattern already visible in community work. A 2024 repository claimed Meshtastic running on XIAO ESP32C6 plus Wio SX1262, including an EU_868 build and LONG_FAST at 27 dBm. That kind of early experimentation shows why formal firmware support matters: once the pin map is right and the variant is in tree, the same compact hardware becomes much easier to flash, test, and reuse. For builders choosing between this pair and more proven ESP32-based boards, the real tradeoff is simple: smaller and more modern, or larger and more established.
