NodakMesh spotlights $39.99 GAT562 solar repeater, cheapest 1W mesh board
A $39.99 board pushed solar repeaters into reach, but its direct solar pads made power design the real story.
A $39.99 board has started to change the math for Meshtastic infrastructure. NodakMesh highlighted the GAT562 30s Mesh Solar Repeater as the cheapest off-the-shelf 1W mesh board it had seen, and at that price it starts to look less like a curiosity and more like something you could scatter across trail corridors, hilltops, and temporary event sites.
The hardware is built around a Nordic nRF52840 microcontroller and an SX1262 LoRa stage rated at 30 dBm, with direct solar input pads and IPEX connectors for the LoRa and Bluetooth antennas. That puts serious mesh capability into a compact board, and it matters that the GAT562 family supports both Meshtastic and MeshCore. GAT-IoT also positions the broader family as more than a single bare board: its GAT562 30S Mesh Module uses nRF52840, SX1262, and a TCXO with an onboard IPX antenna interface, while the GAT562 30S Mesh Kit adds integrated power management, a 1.76-inch GNSS module, and an approximately 1650 mAh battery. A separate GAT562 Mesh Solar Relay variant is listed with an approximately 800 mAh rechargeable battery and solar charging support.
The low sticker price did not come without warnings. The write-up noted that the board did not appear to include an MPPT charge controller or a battery-protection IC, and that the solar pads were direct inputs. In plain terms, that means the board should not be treated like a plug-and-play solar system without checking the charging path carefully. A 5V panel wired straight to a Li-ion cell can damage the battery when sunlight is strong and the cell is already full, so the cheap path is only the right path if the power design is sound.

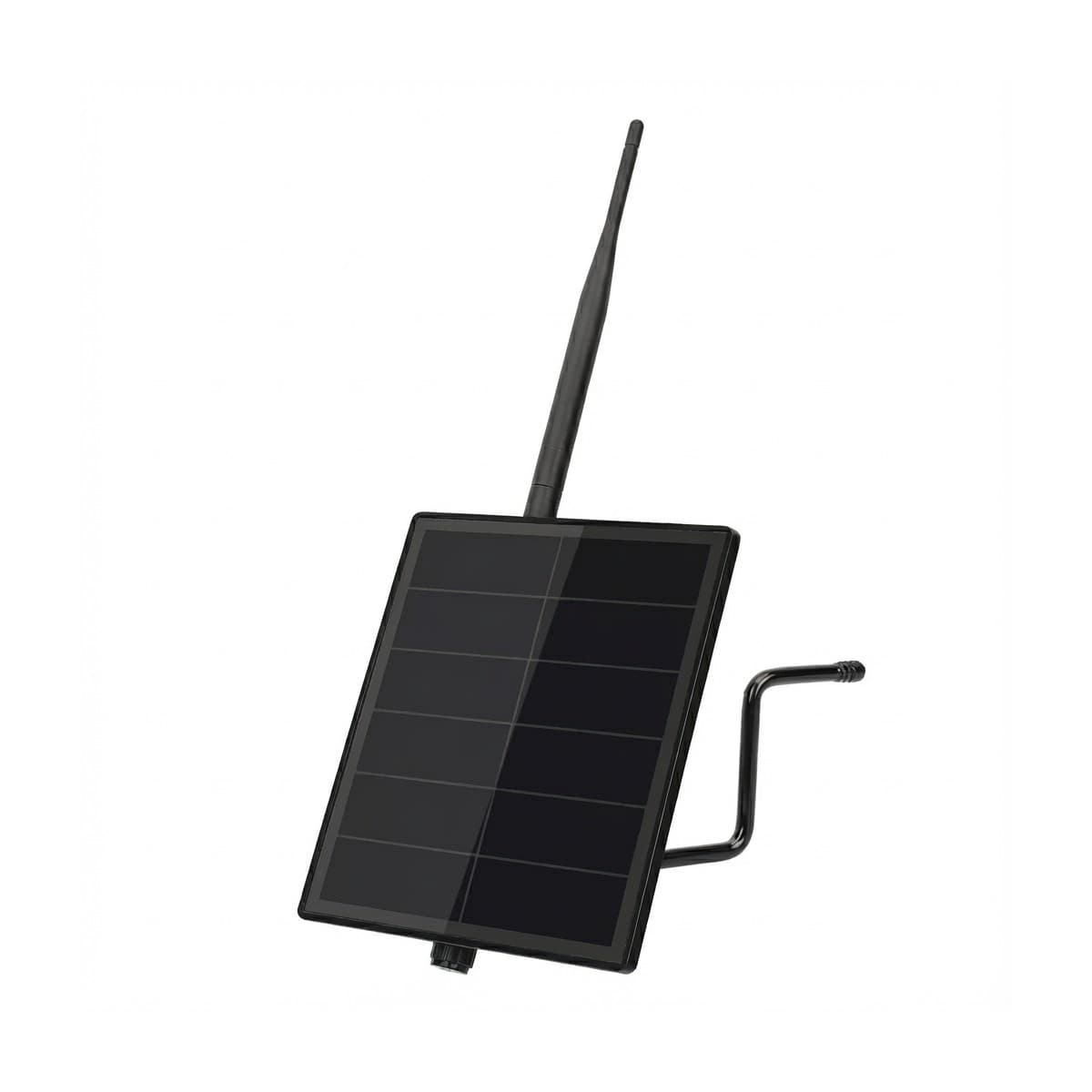

That caution lands squarely in Meshtastic territory. Meshtastic describes itself as an open-source, off-grid, decentralized mesh network built for affordable, low-power devices, and its solar guidance says device power consumption needs to be measured before choosing panel and battery size. Its configuration docs also recommend keeping most nodes in client-oriented roles, with Repeater and Router reserved for specialized use. For fixed outdoor infrastructure, RAKwireless already sells the WisMesh Repeater as a long-term deployment device with an IP67-rated enclosure and support for external solar panels, along with a WisMesh Repeater Mini that ships with a 3200 mAh battery and solar panel.
MeshCore has already added the GAT562 30s to its supported-device list, and its companion app spans iOS, Android, macOS, Windows, Linux, and the web. The reserved pads for a buzzer and joystick suggest the GAT562 PCB may be part of a larger hardware family, but the bigger takeaway is simpler: if the radio chain holds up and the solar path proves reliable, this is the kind of board that could turn a niche relay into a repeatable deployment.
