How vintage analogue synths work, from Minimoog to Prophet-5

The Minimoog Model D was introduced on August 20, 1970, and the easiest way to read a vintage analogue synth is still to follow the signal like a trail of bread crumbs. An oscillator makes the raw tone, a filter strips away harmonics, an envelope shapes the note over time, and a VCA controls loudness. That source-modifier chain is why a Minimoog, an ARP Odyssey, a Roland SH-101, and a Prophet-5 can all live under the same broad label while feeling completely different under your hands.

The subtractive core, piece by piece

Subtractive synthesis is usually the entry point, and it is also the architecture that collectors keep coming back to because it is so legible. The VCO, VCF, and VCA form the spine: voltage-controlled oscillators provide the raw waveform, voltage-controlled filters carve it, and the voltage-controlled amplifier gives it shape in the room. Envelope generators, usually described through ADSR behavior, tell the sound when to attack, decay, sustain, and release, while LFOs add movement through slow periodic modulation.

The little words in listings tell you what kind of instrument you are actually looking at. Resonance, detune, sync, pulse width, and modulation routing describe how hard the filter can bite, how two oscillators interact, whether one oscillator can lock to another, how the waveform can be widened or thinned, and how far the instrument can be pushed away from a fixed “preset” personality.

What analogue really means

Analogue does not automatically mean better, warmer, or more musical. It usually means the sound is created and shaped by voltage-controlled circuitry rather than by samples or software. That can produce the kind of instability players remember immediately: oscillators drift a little, envelopes can feel snappier or softer depending on the design, and filters can be driven into a response that becomes part of the instrument’s identity.

Vintage analogue machines cover a lot of ground. Some are raw and aggressive, some are silky and polite, and some seem to sit right on the edge of control. The shared language is still the same, which is why an experienced buyer can read a machine’s personality from a few key terms in a manual or listing.

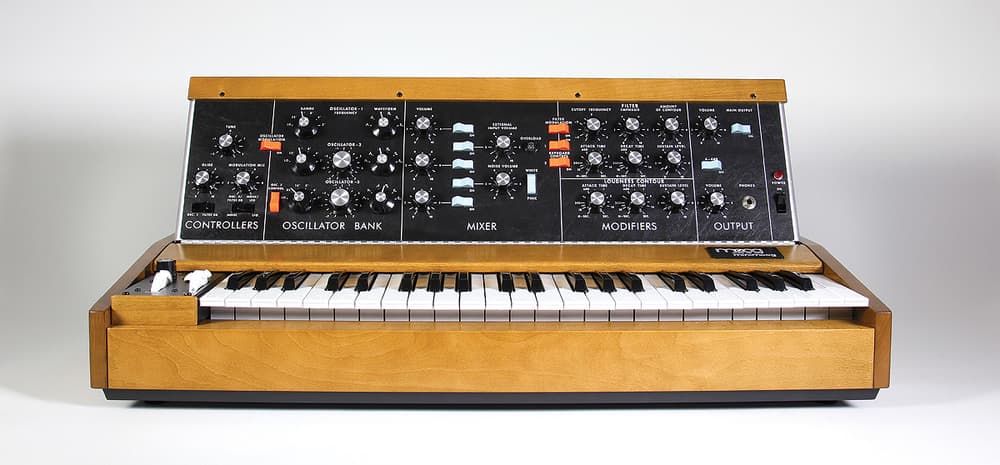

The Minimoog as an anchor

Dick Hyman demonstrated the Minimoog Model D at a Jazz in the Garden performance at New York’s Museum of Modern Art, the Bob Moog Foundation records. It put Moog’s essential ideas into a self-contained, portable monophonic format instead of a wall of patch cords.

Bill Hemsath built the “Min A” in late 1969 at R. A. Moog, Inc., with help from fellow engineer Chad Hunt. The Minimoog condensed a modular approach into a performance instrument that could sit in front of a player instead of behind a technician.

Monophonic punch versus polyphonic spread

The Minimoog is built for one line at a time, and that focus is a big part of why players still chase it. A monophonic instrument asks the filter and oscillators to do all the dramatic work in a single voice, which is where the famous lead sound and bass weight come from. When people talk about the “Minimoog sound,” they are usually talking about that concentrated path from oscillator through filter to amplifier, with every knob doing visible work.

A Sequential Prophet-5 points in a different direction. Where the Minimoog is immediate and singular, a polyphonic synth like the Prophet-5 opens the door to chords and pads, which changes the whole relationship between architecture and performance. The same basic subtractive vocabulary still applies, but the instrument’s value shifts toward voicing, spread, and how multiple notes sit together instead of how one voice dominates a mix.

ARP Instruments was founded in 1969 in Massachusetts, and the ARP Odyssey arrived in 1972 as a duophonic synthesizer designed to compete with the Minimoog. Duophony tells you a lot in very little space: it is not fully monophonic, and it is not fully polyphonic, which gives the Odyssey a distinct practical niche.

The SH-101 and the appeal of direct control

Roland’s SH-101 shows another branch of the family tree. Introduced in 1982, it was designed with portability and affordability in mind and was originally marketed to beginners. That positioning explains why the instrument feels stripped down without feeling incomplete. The control surface is part of the appeal: fewer barriers, quicker results, and a layout that keeps the signal path obvious.

Roland calls the SH-101 a key ingredient in shaping electronic music since its release. Instruments like the SH-101 and ARP Odyssey make the architecture legible in a way that bigger, more ornate keyboards sometimes hide.

How to decode listings and spec sheets

Once you understand the chain, vintage listings stop feeling like folklore and start reading like maps. If a synth is monophonic, duophonic, or polyphonic, you immediately know how it will behave with lines, intervals, and chords. If it advertises multiple VCOs, filter resonance, oscillator sync, or pulse width control, you know where the instrument is likely to get its character.

A good scan of the spec sheet usually comes down to a few questions:

• How many oscillators are there, and what waveforms do they offer?
• What kind of filter is used, and how far can the resonance go?
• Is the envelope generator simple or more flexible?
• Are there LFOs and modulation routings beyond the obvious basics?
• Is the voice architecture meant for solo lines, duophonic intervals, or full chords?

The names matter, but the architecture explains the sound buyers actually chase: the Minimoog for concentrated punch, the Odyssey for agile duophonic bite, the SH-101 for compact directness, and the Prophet-5 for stacked voices and lush pads.
