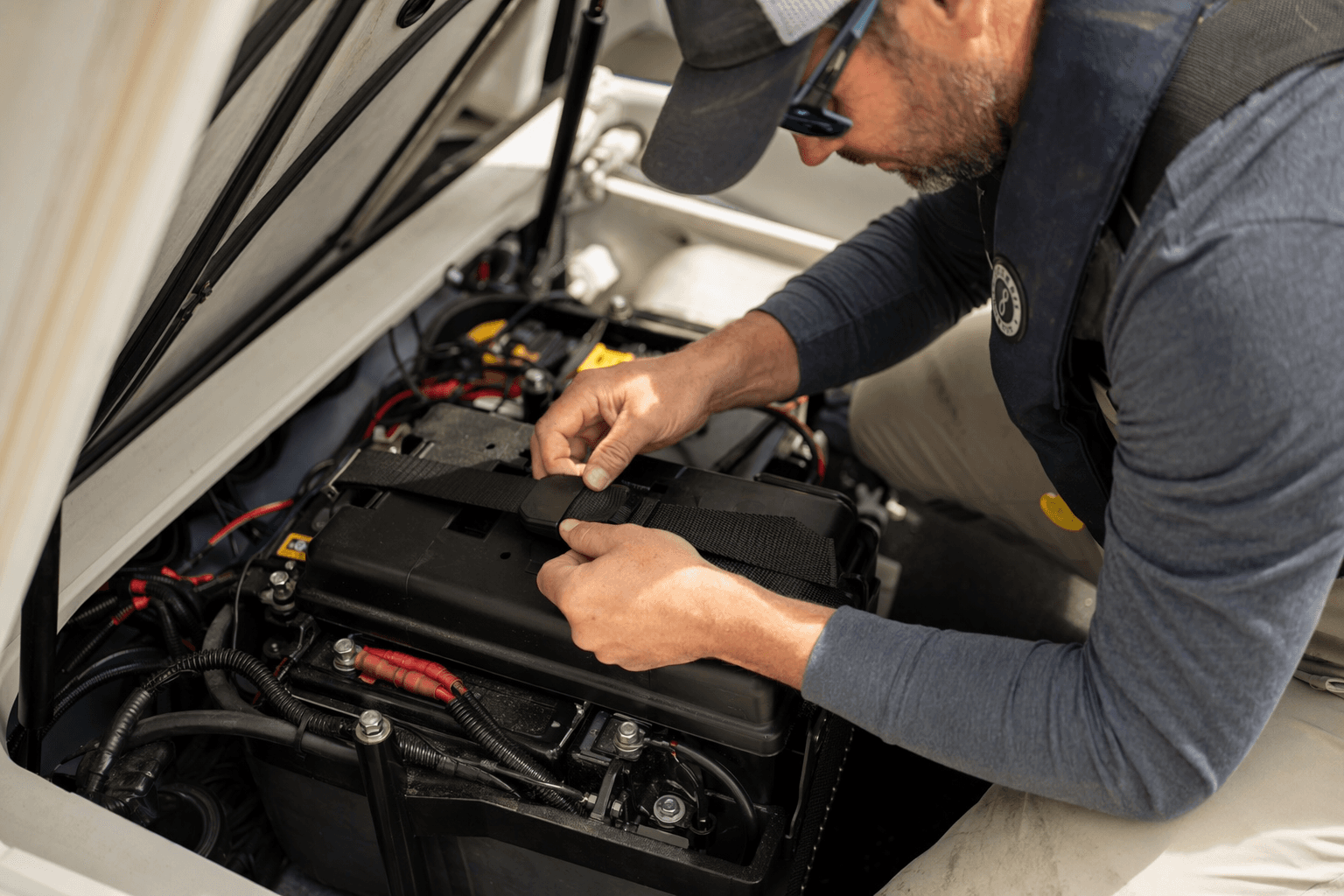

Why Your Boat’s Battery Tray Matters More Than You Think

Why the tray is not a throwaway part

A battery tray looks like simple plastic until the boat lands hard in a wake and the battery shifts with a thump in the bilge. That is the moment the cheap-looking part starts acting like a safety system, because a loose battery can do two bad things at once: it can cut your power when you need it most, and it can turn into a heavy projectile when the boat heels, pounds, or takes a sharp turn. On a rough passage or even an overnight anchorage with chop rolling through the anchorage line, that is not an annoyance. It is a real knockdown hazard.

Jonathan Eldridge’s point for Better Boat is the one most owners miss: the tray is not just a platform. It is the restraint that keeps the battery planted while the boat lives in vibration, heel, spray, and corrosion. If the battery moves by hand after installation, the job is not finished. That is the simplest test, and it is brutal in its honesty.

The standard is stricter than most dock talk

The regulatory baseline is not vague. Under 33 CFR 183.420, each installed battery must not move more than 1 inch in any direction when a pulling force of 90 pounds or twice the battery weight, whichever is less, is applied through the battery’s center of gravity. That is a real-world restraint standard, not a suggestion, and it explains why a tray that merely looks snug can still fail the test.

The American Boat & Yacht Council has been developing marine safety standards since 1954, and its guidance is meant to help with the design, construction, equipage, and maintenance of small craft. ABYC-aligned advice and West Marine’s guidance both land on the same message: batteries must be secured against movement in any direction. This is not a cosmetic detail; it sits inside the electrical and fire-safety system of the boat.

The part that surprises a lot of owners is how specific the hardware needs to be. Battery boxes, trays, and hold-down straps are commonly sold as matching marine safety hardware, with group-specific options such as Group 24, Group 27, and Group 31. That specificity matters because the right tray for one case shape may leave another battery loose enough to damage terminals, crack a case, or work a cable free.

Why lithium changes the equation

A lot of sailors are moving from flooded or AGM batteries to lithium, and that upgrade can create a hidden fit problem. A tray that worked fine for a heavier lead-acid battery may not clamp or locate a lighter LiFePO4 battery correctly. The battery may be electrically better, but mechanically worse off if the old tray depended on weight and a snug case profile to keep it in place.

That is why the common shortcut, reusing the old tray because the footprint seems close enough, is so risky. A battery that bounces in the tray can load the terminals, loosen a cable, crack the case, or chew up the compartment around it. If you are changing chemistry, you need to think about the tray, strap, fasteners, and mounting surface as one system. A good lithium install is not just about charging and chemistry. It is about restraint.

Manufacturers and marine sellers increasingly market trays, boxes, and hold-downs for specific battery groups and lithium setups for a reason: battery size, shape, and weight all affect how it has to be captured. The real question is not whether the battery looks seated. The real question is whether it stays within that 1-inch movement limit when the boat is slammed, rolled, and vibrated in actual use.

How to choose the right tray and hold-down

If you are buying new hardware, start with the battery you actually own, not the one you wish would fit. Group size is the first clue, but it is not the whole story. Case dimensions, terminal location, and the way the hold-down bears on the battery all matter, especially if you are replacing an older lead-acid battery with a lighter lithium unit.

Look for a tray and restraint setup that gives you:

• a tray sized for the battery’s group and case shape
• a strap or clamp that bears the load without twisting the case
• fasteners that bite into a solid mounting structure, not soft liner material
• enough clearance that cables are not pinched when the boat flexes
• corrosion-resistant hardware that can live in a wet, salty compartment

The mounting surface matters as much as the tray. If the tray is bolted to weak material, the restraint is only as strong as the structure behind it. That is where a lot of DIY installs get lazy: the tray itself may be fine, but the bolts are into something that will not hold under repeated pounding.

The installation checklist that actually holds up offshore

The best battery tray install is boring once it is done, because boring means nothing is moving. Before your next passage or overnight anchorage, go through the system as if the boat were going to spend the day in rough water.

That last point matters because a tray that starts tight can still settle, and a cable that seemed clear can become a problem after the first day of use. If you hear a thump, see scuffing, or find any sign that the battery has shifted, treat that as a failed install, not a nuisance to ignore.

What this really protects you from

This is one of those jobs that pays you back twice. First, it protects the electrical system by keeping the battery in place so cables stay connected and terminals stay protected. Second, it protects the boat itself by reducing the chance that a heavy battery becomes a moving object inside the compartment.

The bigger point is simple: battery restraint is not a finish detail. It is part of the boat’s structural safety, electrical safety, and fire safety all at once. That is why ABYC’s long-running standards framework, West Marine’s practical guidance, and the Coast Guard’s movement limit all line up so neatly. They are all saying the same thing in different ways: if the battery can move, the installation is not done.

For a DIY sailor, the tray is where a routine maintenance job turns into rough-water readiness. Get the tray right, match it to the battery you actually have, and make sure the whole assembly passes the no-movement test. On a boat, that is how a small piece of plastic becomes one of the most important parts in the compartment.
